Introduction

Welcome to the Gravity Legal API.

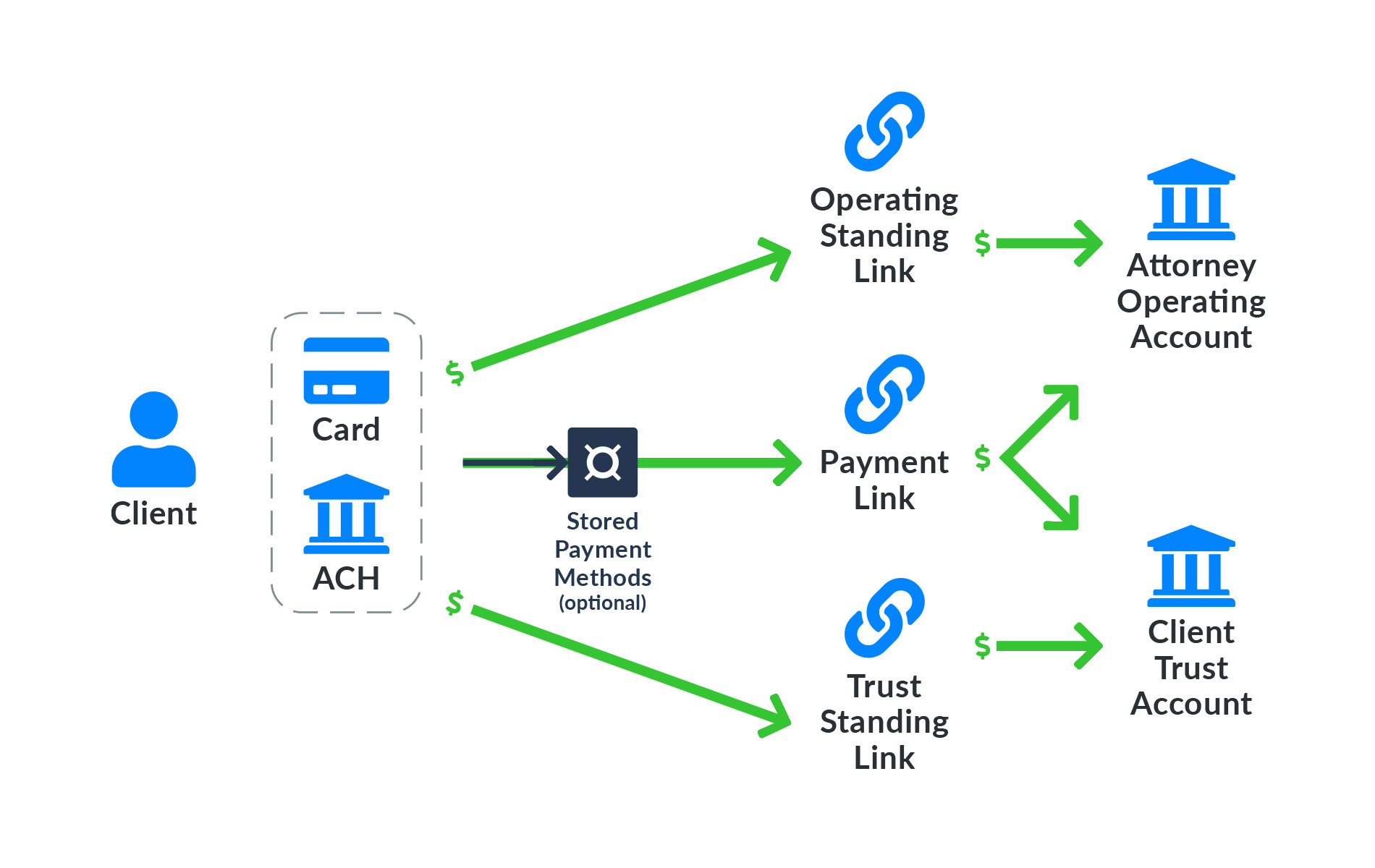

Gravity Legal Overview

Gravity Legal allows individual attorneys or firms to collect client payments for services rendered or funds designated for a trust or IOLTA account. Firms may accept payments either via credit/debit card or direct bank transfer using a Payment Link or Standing Link. A Payment Link is created for a client whereas a Standing Link may be used by any number of clients. Clients may also securely store payment method details in a Stored Payment Method for future payments. The diagram on the right shows this.

Gravity Legal has built-in support for business processes specific to legal professionals such as strict demarcation of payments between operating and trust accounts, transfer of funds from trust to operating accounts and trust reconciliation by matter and client. Please refer to the product brief for additional information.

We realize that law firms may already be using other software systems to manage their business processes, generate client invoices and other such needs. So we have designed Gravity Legal to be easily integrated with such systems. These systems are referred as partner systems and may use the API to perform various tasks. Almost every operation that can be performed via the Gravity Legal Web UI can also be performed via the APIs. It also supports a growing number of integrations hosted within itself.

The API exposes entity and operation endpoints supported by the service. An entity represents a category of business objects sharing common properties and relations. For example, the Client entity may have many Contacts with one being a primary Contact with properties such as firstName, lastName etc. and a one-to-many relationship with the Matter entity. An entity instance is a resource in the sense of RESTful API and supports the usual CRUD (Create, Retrieve, Update and Delete) operations along with List operation for filtered and paginated retrieval of multiple instance objects. These operations are further augmented with entity specific instance and entity operations to support behavior that cannot be modelled via CRUD and List operations alone. An example of an entity operation on Client would be to get the average revenue per client over all clients for a specific attorney. In addition, there are standalone operation endpoints to effect behavior that logically don’t fit in any of the above categories, such as trustToOperatingTransfer that transfers money from one BankAccount to another.

An operation is performed by making an HTTP request to the endpoint. The parameters included in the endpoint URL and the JSON in the request message body are the inputs to the operation and the returned status code and the body of the response message is the output. Refer to the API Endpoints for more details.

You will need a partner or customer account to make the API calls. A partner account allows you to onboard your own customers and have them accept payments. Such an account is best suited for SaaS companies servicing multiple customers. In contrast, a customer account is best suited for firms that want Gravity Legal to handle client payments.

For a partner account in the sandbox environment, please send a message to admins@gravity-legal.com. Signup for customer account in the sandbox environment is automatic – just visit https://app.sandbox.gravity-legal.com and login with your Google account or Sign up with an email id.

The best way to become familiar with using the API is to try our freely downloadable sampleapps from Github.

Entity Model

Entity Model

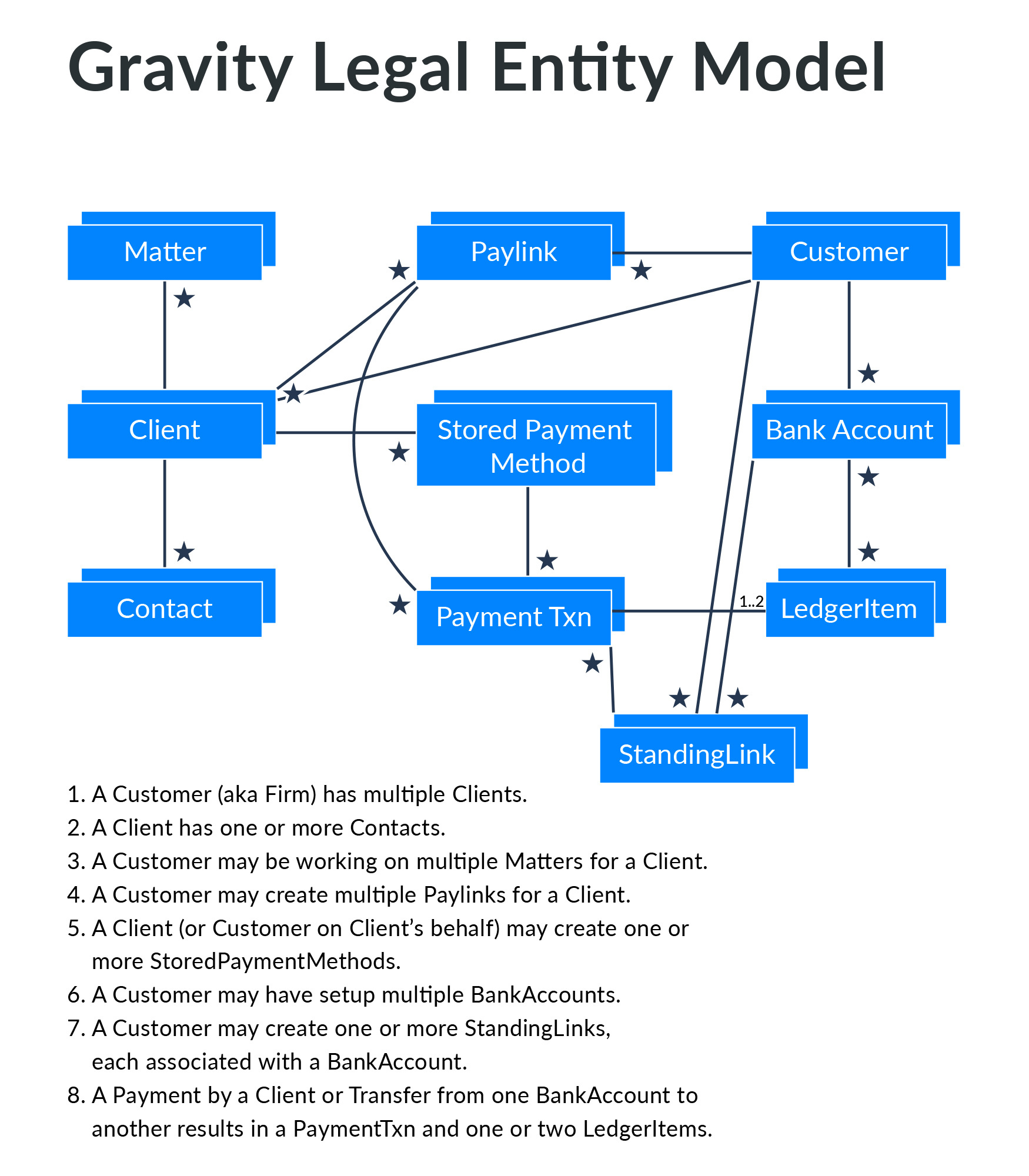

The diagram at right depicts the Gravity Legal entities and their relationships for a specific partner:

Specifics of entity properties, relationships and operations can be found in the entity specific sections.

Partner Integrations

A partner integration using the Gravity Legal API consists of a module hosted by the partner system. This module is responsible for:

  1. Onboarding existing or new Customers to Gravity Legal.
  2. Creating Paylinks or StandingLinkss and tracking payments. These links can then be included in client invoice and/or client facing web pages. It is also possible to iframe these.

Onboarding Customers

Find below the steps involved in onboarding a customer. All or some of these can be accomplished programmatically via the API or through the UI.

  1. Partner system or representative creates a new Customer entity (aka, Firm) in Gravity Legal.
  2. Partner system or representative invites the customer representative to Signup for Gravity Legal by email address.
  3. Customer representative fills-in the forms for Credit/Debit and/or Bank Transfer processing at Gravity Legal Web UI.
  4. Gravity Legal support completes the processing and updates the Customer status and information about its operating and trust Bank Accounts in the Gravity Legal system.
  5. Partner system or representative updates its own system to indicate readiness to use Gravity Legal for accepting payments.
  6. Partner system creates customer’s existing and new Clients and Matters in Gravity Legal using the API

This happens much more often (compared to Customer onboarding) and must be automated via use of APIs.

  1. Partner system creates a Paylink.
  2. Partner system sends the Paylink url to the customer’s client. This could happen via Partner’s website, email to the client or some other mechanism.
  3. Customer’s client visits the Paylink url and makes the payment at Gravity Legal payment page. Partner system gets notified via a webhook call.

Trust to Operating Transfers

  1. Partner system invokes trustToOperatingTransfer API call.

Environments

A sandbox environment allows partners and customers to get familiar with the APIs to test their integrations before moving to the production environment.

These environments are completely segregated with their own user ids and API tokens.

Authentication and Authorization

Authentication and Authorization Headers

Authorization: Bearer <token>
X-PRAHARI-APPID: <appId>
X-PRAHARI-ORGID: <orgId>

Each request to a Gravity Legal endpoint must include HTTP headers Authorization, X-PRAHARI-APPID and X-PRAHARI-ORGID, as shown in the right:

<token>, <appId>, <orgId> and base part of the endpoint URLs can be downloaded in an .env.<id> file by a partner or customer admin via the Web UI.

API Structure

Entity and Operation Specific API Endpoints

The Gravity Legal API is a RESTful API conforming to industry standard conventions. Specifically:

  1. GET <envUrl>/v1/entities/<Entity>/<entityId>[?select=<propList>] retrieves the the <Entity> instance identified by <entityId>. Without the optional <propList>, the response message includes only the direct properties. With <propList>, related entities and their properties can be retrieved as well.

  2. GET <envUrl>/v1/entities/<Entity>[?<params>] retrieves a collection of entity objects (ie; lists) specified via <params>. More on <params> and its effect on the response is covered in a subsequent section.

  3. POST <envUrl>/v1/entities/<Entity> creates an entity instance with the property values specified in the JSON body of the request. The response message is a JSON representation of the created object, including the unique id generated by the Gravity Legal backend.

  4. PATCH <envUrl>/v1/entities/<Entity>/<entityId> updates the entity object uniquely identified by <entityId> with the new value of properties included in the request JSON body. The properties not included in the request body are left unchanged.

  5. POST <envUrl>/v1/entities/<Entity>/<entityId>/<instanceOp> performs the operation identified by <instanceOp> on the entity instance identified by <entityId>. The json payload is supplied as the input to the operation.

  6. POST <envUrl>/v1/entities/<Entity>/<entityOp> performs the operation identified by <entityOp> on the entity. Note that this operation is not associated with a specific instance. The json payload is supplied as the input to the operation.

  7. POST <envUrl>/v1/operations/<op> performs a standalone operation identified by <op>. This operation also may have a json payload.

The structure of request and response messages for instance, entity and standalone operations are operation specific and are documented in relevant sections.

The status code returned on successful execution is 2xx. On failure, the status code could be 4xx to indicate problems with the request message and 5xx to indicate a server side problem.

Request and Response Messages

Success response

{
  result: <json-object>
}

Failure response

{
  error: {
    code: <string>,
    message: <string>
  }
}

  1. GET and DELETE requests don’t carry any request body. All others include JSON text as request body with HTTP header Content-Type set to application/json.

  2. Success response messages originating from the server are JSON text with response HTTP header Content-Type set to application/json. As shown in the right hand side, there is a single top-level element result. Its value depends upon the operation.

  3. Failure response messages accompany non-2xx status code and may or may not include a JSON text. Failure reported by the server usually will have the JSON text. Keep in mind that some errors might originate in the network or serving infrastructure such as the API g/w. These errors don’t follow the above rule.

Property Types

Entity properties are typed values. Supported types are shown below:

datatype description
string sequence of characters
uuid stored as 16-byte value and represented as 8-4-4-4-12 for a total of 36 characters
enum one value of type string from a list of string values
number a numeric value
int an integer
boolean takes one of the two values: true and false
date point in time, represented as ISO 8601 string
json JSON object
<Entity> a one-to-one or many-to-one relationship to <Entity>
<Entity>[] a one-to-many or many-to-many relationship to <Entity>

Common Properties

These properties are common to all the entities:

property datatype description
id uuid system generated unique id
externalId string caller assigned id. can be used for lookups
createdOn date entity instance creation timestamp
updatedOn date entity instance update timestamp

Entity specific table of properties do not include these ones.

Pagination

LIST Request

GET <envUrl>/v1/entities/<Entity>?pageNo=<page-no>&pageSize=<page-size>

Success response of a LIST operation

{
  result: {
    pageNo: <page-no>,
    pageSize: <page-size>,
    totalCount: <count>,
    records: [ <record1>, <record2>, ...]
  }
}

List operations may cause a large number of records to be returned. These records are paginated for easier handling by the API client and managing load on the server. The request itself may specify pageNo and pageSize parameter values, as shown to the right. The starting page no. is 1 (and not, 0). The default value for pageNo and pageSize are 1 and 25, respectively.

Ordering

LIST Request with Ordering

GET <envUrl>/v1/entities/<Entity>?orderBy=<prop>&orderDir=desc

The records in the response message of a list operation may be ordered by any of the properties that supports ordering. Datatypes that support ordering are: number, int, date, and string.

The property to be used for ordering is specified via orderBy parameter and the order direction is specified via orderDir parameter. Possible values for orderDir are asc and desc, with asc being the default.

Filtering

LIST Request with Matching Property

GET <envUrl>/v1/entities/<Entity>?<prop1>=<value1>

LIST Request with Date Range

GET <envUrl>/v1/entities/<Entity>?createdOn:range=['2014-03-12T13:37:27', '2018-03-12T13:37:27']

A number of operators are supported on properties to return a subset of records satisfying the condition on list operation. These are specified as <param>=<value> in the query string.

Param Value Description
<prop> <value> returns entity records with property <prop> matching the specified <value>
<prop>:not <value> returns entity records with property <prop> NOT matching the specified <value>
<prop>:in (a, b, …) returns entity records with property <prop> in the specified set.
<prop>:not_in (a, b, …) returns entity records with property <prop> NOT in the specified set.
<prop>:range [a, b], ]a, b], [a, b[, ]a, b[ returns entity records with property <prop> in the specified range. Range [a, b] translates into condition a <= <prop> <= b, range ]a, b] translates into condition a < <prop> <= b and so on.

For operators :in and :not_in, the values within parentheses MUST NOT be inlcuded in single or double quotes. If a string value includes comma then it must be repeated. For example, to get Matters with names ‘The case of John, Harry and Debbie’ and ‘The case of Natalya’, the request is shown in the right hand side:

LIST Request with :in operator and names with commas

GET <envUrl>/v1/entities/Matter?name:in=(The case of John,, Harry and Debbie, The case of Natalya)

Presence of more than one condition in a request mean ALL the conditions must be satisfied by returned records.

Customer

Requests to get all or some Customers

GET <envUrl>/entities/Customer
GET <envUrl>/entities/Customer?externalId=cus_11111111
GET <envUrl>/entities/Customer?ccActivated=false

Sample response message

{
  "result": {
    "records": [
      {
        "appId": "tpartnr",
        "id": "138eb3cc-7d64-4456-a79f-aacfce65c5ba",
        "createdOn": "2019-12-03T19:50:17.175Z",
        "updatedOn": "2019-12-03T20:26:38.000Z",
        "deleted": false,
        "externalId": "11111111",
        "achActivated": true,
        "achEnabled": false,
        "achProcessor": "vcmock",
        "appData": null,
        "ccActivated": true,
        "ccEnabled": false,
        "ccProcessor": "epmock",
        "checkEnabled": false,
        "defaultDepositAccounts": {
          "operating": "76985bd6-df51-4bc0-adc2-473d02da1e29",
          "trust": "140a8e7b-611e-4194-a73a-1341c0553fc4"
        },
        "name": "Test Firm #2",
        "orgId": "b172cf23-4565-46a5-802b-0b8040677c6c",
        ...
      }
    ]
    "totalCount": 1,
    "pageNo": 1,
    "pageSize": 25
  }
}

A Customer object represents a firm. A partner software may create Customer entities in Gravity Legal as it onboards new customers in its own system.

property datatype description
name string firm display name
ccActivated boolean readonly. flag indicating Credit/Debit payment setup. updated by the system on successful CC application processing
ccEnabled boolean flag indicating Credit/Debit payment option for payers. Can be used to temporarily disable
achActivated boolean readonly. flag indicating ACH payment setup. updated by the system on successful ACH application processing
achEnabled boolean flag indicating bank transfer payment option for payers. Can be used to temporarily disable
checkMailingAddress Address address to mail paper cheques
checkEnabled boolean flag indicating paper cheque acceptance. Requires checkMailingAddress to be set
clients Client[] readonly. customer’s clients.
ledger LedgerItem[] readonly. All book-keeping entries associated with the customer
paylinks Paylink[] readonly. Payment Links created by the customer

Get A Customer By Id

Requests to a specific Customer object

GET <envUrl>/entities/Customer/138eb3cc-7d64-4456-a79f-aacfce65c5ba

Sample success response

{
  "result":
    {
      "id": "138eb3cc-7d64-4456-a79f-aacfce65c5ba",
      "name":"The Old Firm",
      ...
    }
}

Sample success response with missing object

{
  "result": null
}

The id needs to be part of the URL and the returned message has the JSON object as value of the top-level field result.

If the object corresponding to the id doesn’t exist then the response message has status code of 200 but the top-level field result is set to null.

Update A Customer

Requests to a specific Customer object

PATCH <envUrl>/entities/Customer/138eb3cc-7d64-4456-a79f-aacfce65c5ba
{
  "name": "The New Firm"
}

Sample response

{
  "result":
    {
      "id": "138eb3cc-7d64-4456-a79f-aacfce65c5ba",
      "name":"The New Firm",
      ...
    }
}

The sample request and response message on the right illustrate change of name. Property name is one of the few that can be updated. Most others are read-only. Note: the backend implementation is not fully hardened to reject such updates yet.

Instance Operation inviteUser

Sample Request

POST <envUrl>/entities/Customer/bb8c380d-19b9-4e11-b893-482fd3206eda/inviteUser
{
  "firstName": "Jane",
  "lastName": "Doe",
  "email": "jane.doe@example.com",
  "role": "admin"
}

Sample Response

{
  "result": {
    "id": "c142b48c-76f1-4f8e-a535-e323439be791",
    "firstName": "Jane",
    "lastName": "Doe",
    "status": "OUTSTANDING",
    "email": "jane.doe@example.com",
    "role": "admin"
  }
}

This instance operation can be used to invite a new user by email address to join as Firm admin programmatically.

This request causes a Welcome email message to be delivered to the email Inbox.

Client

Client Creation Request

Client Creation Request (Alternative Form)

Client Retrieval Request

Client List Request (for a specified customer)

A Client entity represents a paying client of a Customer, which can be a Person or an Organization.

A partner software may create Client entities associated with a Customer in Gravity Legal. Or a Customer software may create its own Client entities.

A Client entity may be associated with one or more Contact entities. One of these must be desiganted as the primaryContact. To create a Client, send the Client payload with the indvidual properties clientName, firstName, lastName, phone, email, and address and the backend will create a Contact entity and make it the primaryContact. To create a Client with multiple contacts, first create Address entities, then Contact entities with address property set to the corresponding id returned and finally the Client entity. The resquest and response snippets at the right side show examples of both.

As you can see in the following table, most properties are optional.

property datatype description
clientName string Client’s name. Optional. Created by concatenating firstName and lastName if not present in create request.
firstName string First name of the primary contact. Mandatory.
lastName string Last name of the primary contact. Optional.
fullName string Readonly. Concatenation of first and last name.
phone string Primary contact’s phone number for display purposes. Optional.
email string Primary contact’s email for display purposes. Optional.
primaryContact Contact Primary contact. Optional.
contacts Contact[] list of contacts. Optional.
outstanding integer readonly. outstanding amount against the client, in cents
totalRevenue integer readonly. total amount paid by the client, in cents
customer Customer The firm owning the client. A partner request needs to specify this. For a customer request, this is taken from HTTP headers.

Clients representing either Person or Organization must have a primary contact. The clientName property may be omitted for a Person client.

Contact

property datatype description
firstName string Contact’s first name. Mandatory.
lastName string Contact’s last name. Optional.
phone string Contact’s phone number for display purposes. Optional.
email string Contact’s email for display purposes. Optional.
client Client Owning Client entity. Mandatory.

Details of CRUD and List operation omitted for brevity.

Matter

A Matter object represents a legal case being represented by the firm on behalf of its client. A partner software may create Matter entities associated with its Client in Gravity Legal.

property datatype description
name string description of the matter
latestActivity date readonly. timestamp of the latest activity related to the client
outstanding integer readonly. outstanding amount against the client related to this matter, in cents
paid integer readonly. total amount paid by the client related to this matter, in cents
client Client the client associated with the matter
paylinks Paylink[] readonly. Payment Links created for the client related to this matter

Details of CRUD and List operation omitted for brevity.

BankAccount

A BankAccount object represents a bank account owned by the firm. It gets created within the Gravity Legal after it is approved to accept client payments. The partner system may retrieve it to match with its internal records.

property datatype description
accountHolderName string Bank account holder’s name
accountNumber string Account number. All but the last 4 digits are masked
routingNumber string Account’s routing number. All but the last 4 digits are masked
accountCategory string either ‘operating’ or ‘trust’
accountType string either ‘checking’ or ‘savings’
customer Customer readonly. Customer owning the bank account
ledger LedgerItem[] readonly. items representing money movement in/from the account

A BankAccount object cannot be created, updated or deleted using API calls.

Details of Retrieve and List operations omitted for brevity.

Paylink

Paylink Creation Request

POST <envUrl>/entities/Paylink
{
    "customer": "e99eff21-64c8-43aa-97c7-5bc2530bcce5",
    "client": "2b2c3bea-e139-483e-bb36-4a3a00158dd4"
}

A Paylink object represents a Payment Link, a simplified instrument to bill clients for operating and/or trust amounts. A partner software may create Paylink entities, specifying Customer, Client and optionally, Matter by id and add outstanding operating and/or trust amounts with instance operation addToPaylink

property datatype description
customer Customer mandatory. specify Customer’s id at creation
client Client mandatory. specify Client’s id at creation
matter Matter optional. specify Matter’s id at creation
outstanding integer readonly. Amount outstanding (in cents)
paid integer readonly. Amount paid so far (in cents)
url string readonly. URL to be sent to the client for making payment
ledger LedgerItem[] readonly. items representing money movement related to this Paylink
webhookDetails JSON readonly. result of the last webhook callback. helpful for debugging

A Paylink may not be updated after creation, except via instance operation addToPaylink that adds outstanding operating and/or trust amount to the Payment Link.

addToPaylink Request

POST <envUrl>/entities/Paylink/9fb8942b-6180-44a7-93be-a9af5e956209/addToPaylink
{
    "trust": { "amount": 100000 },
    "operating": { "amount": 20000 }
}

This instance operation adds amounts to be collected from the client to an existing Paylink object. This way a single Payment Link can be used to collect multiple payments.

trustToOperatingTransfer

Sample Request

POST <envUrl>/operations/trustToOperatingTransfer
{
    "customer": "e99eff21-64c8-43aa-97c7-5bc2530bcce5",
    "client": "2b2c3bea-e139-483e-bb36-4a3a00158dd4"
    "amount": 50000
}

Sample Response

{
  "result": {
    "success": true
  }
}

This operation allows programmatic transfer of money from trust bank account to operating bank account.

This sample operation request initiates a transfer of $500.00 from the trust account to the operating account associated with the customer. A successful result only means that the call to initiate the Bank Transfer has succeeded, not that the transaction has been committed or even settled.

Trust and operating Bank accounts are setup for the customer at the time of ACH onboarding. In case of more than one Bank Accounts in either category, one in each category must be designated as the default for this call to succeed. If a specific trust or operating account is associated with the client then that one takes priority.

Errors

The Gravity Legal API uses the following error codes:

Error Code Meaning
400 Bad Request – there is a problem with the request
401 Unauthorized – your API key is missing or wrong or you don’t have access to the operation
403 Forbidden – the endpoint is not exposed
404 Not Found – the specified resource or operation could not be found
405 Method Not Allowed – request using an invalid method
429 Too Many Requests – You’re making too many requests! Slow down!
500 Internal Server Error – We had a problem with our server. Try again later.
503 Service Unavailable – We’re temporarily offline for maintanance. Please try again later.
